Major Fiberglass Repair

We are well equipped to handle any structural or cosmetic repairs that your boat might require. However the damage may have occurred- a mishap on the water, storm related, or deficiencies due to the wear and tear that can develop in older boats- we can return your boat to a safe and reliable condition. We have extensive experience in all aspects of fiberglass maintenance, upgrade, and repair.

Sample Project 1: This section is a 28' Cape Dory sailboat that came off of it's mooring during a late summer squall back in 2003. We temporarily removed a section of the fiberglass interior liner to gain access to the most heavily damaged area from the inside; cut out the area of the solid glass hull that had cracked through; built up a strong fiberglass patch on the inside as well as adding some core in that area to provide stiffness; re-built the laminate on the exterior of the hull; re-installed the liner sections; and repaired all the surface defects as well as rebuilding the rudder which had been heavily damaged. Rather than repainting the entire topsides the owner choose to have us re-gel the repaired areas and repaint the boot stripe.

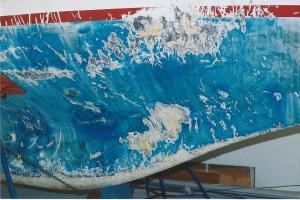

28' Cape Dory - A view of the damage that was mostly contained to the starboard side.	28' Cape Dory - Looking through the opening where the laminate that had been cracked trough was removed. The fiberglass settee has been removed in that area as well and will be re-installed after the repair is completed.	28' Cape Dory - The bulk of the repair work has been completed and the area is ready to for gelcoat resurfacing.
Sample Project 2: This section shows a newly purchased Catalina 36 that was in our shop last spring. We did a core replacement job to the starboard sidedeck in the area of the chainplates and then applied a rolled non-skid to the entire lower deck area using KiwiGrip- a hard acrylic polymer developed in New Zealand. While the boat was in our shop we also rebedded a good deal of the deck hardware as well as installing new teak handrails, a new set of dorade cowls, and a new double anchor roller system on the bow.

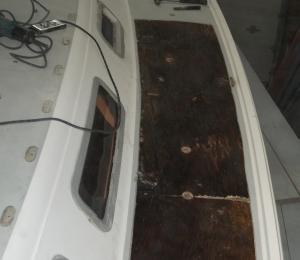

Catalina 36 - With the chainplates removed the delaminated outer skin has been cut away from a very wet plywood core.	Catalina 36 - The damaged core has been removed and will be replaced with 12mm marine Meranti plywood and then the laminate built up with fiberglass cloth and West System Epoxy.	Catalina 36 - The entire lower deck has been resurfaced using KiwiGrip and the chainplates, both port and starboard, re-installed. New teak handrails have been added as well as a new pair of dorade cowls.
Sample Project 3: This rudder belonged to a marine surveyor friend of mine, John McDonough, it is from a 26 Bombay Express, and had seen better days when he brought it to me.

Rudder - The delaminated outer skin had been removed on both sides.	Rudder - The laminate has been built back up using fiberglass cloth and West System products.	Rudder - The surface has been faired and primed using an epoxy primer and an antifouling paint applied below the waterline.
